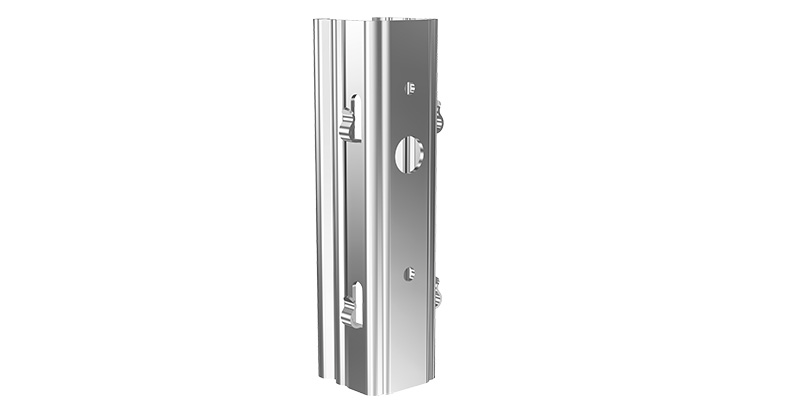

P5E Profile

Product info

The advantages of the  P5E end post are:
- Large “pull out” hole
-  holes in the back for tensioning wires
- Holes at ground level for the base plate
-  the base plate can be attached using a simple
  plug system
- Hook brackets for chains can be attached (see accessories)
- Available in four thicknesses:
  · for rows up to 80m row length use 1.65 mm thickness
  · over 80m row length use 2.15 mm thickness
    in HDG
  · over 150m row length use 2.65 mm thickness

. Please note: end posts must always be approx. 4 "-7" inch deeper than the first or the last row post.

Our end posts are available in 2 different types:
- Hot Dip Galvanized (HDG)
- Strip Galvanized (SG)



The open side of the end post must face the anchor point.

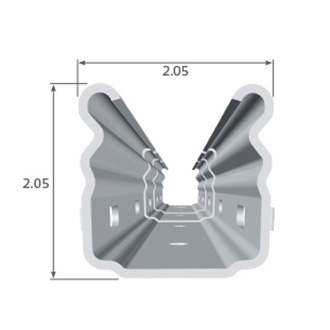

Technical details

Length (inch) Depth (inch)
96 28
108 35
120 37
