P5X Profile

Productinfo
The P5X was developed for use in rocky ground. Due to its almost square shape and compact profile, it is very stable and robust, whilst maintaining flexibility for use with all types of machinery.
The standard version of the P5X is manufactured with the R-hook. As with all our models, S-hooks, Combi-hooks, and double hook options are also available.
Technical details
P5X Installation depth table
Post length [cm] |
Recommended installation depth[cm] |
180 | 55 |
200 | 60-65 |
220 | 65 |
240 | 70 |
250 | 75 |
260 | 80 |
270 | 85 |
P5X Configuration table
Hooks |
Post length(cm) | ||
180-190 | 200-220 | 240-270 | |
Number of pairs of hooks | |||
Short tapered S-hook 10 mm | 1 | 1 | 1 |
Long tapered S-hook 10 mm | 5 | 6 | 7 |
R-hook 10 mm | 5 | 6 | 7 |
Combination hook 14 mm | 5 | 6 | 7 |
Short tapered S-hook 10 mm | 2 | 3 | 4 |
S-hook 8 mm | 1 | 1 | 1 |
Double hook8 mm | 1 | 1 | 1 |
Total number of pairs of hooks | 10 | 12 | 14 |
Fixed wire area

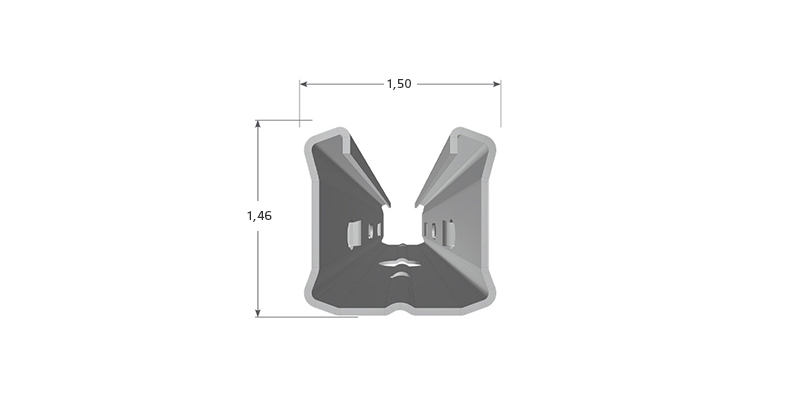

Profil

Fixed wire area
