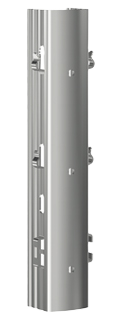

P5L Profile

Product info

The P5L is our widest post. Its side width of 1.65-inch guarantees stability for tall and heavy load trellises of up to 7 feet above the ground.

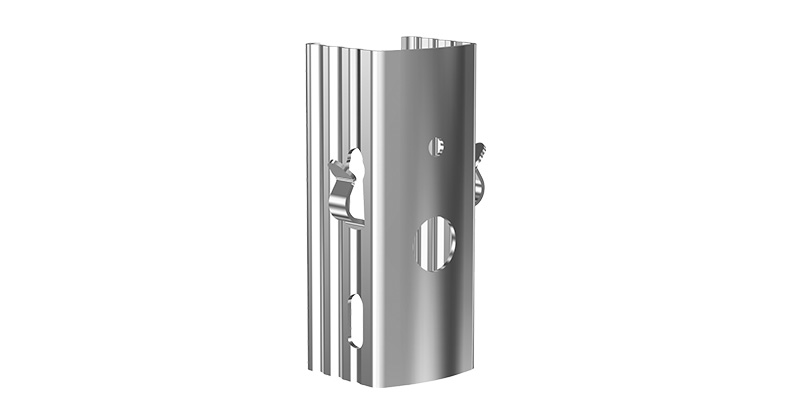

The P5L has approximately 4 inches between hooks. The S hook is standard, but the new R-hook and Combi-hook can also be used here.

Custom designs are available on request.

Our posts are available in 2 different types:
- Hot Dip Galvanized (HDG)
- Strip Galvanized (SG)

Please note the open side of row posts must always face uphill.

Technical details

Setztiefentabelle P5L

Length (inch) Depth (inch)
96 27-30
102 31
108 33-35

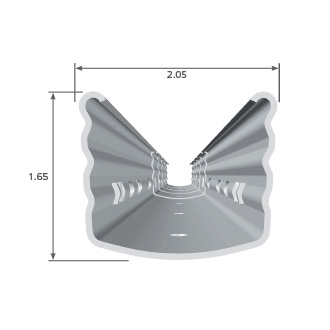

Fixed wire area P5L Profile
Profil P5L Profile
Fixed wire area P5L Profile
